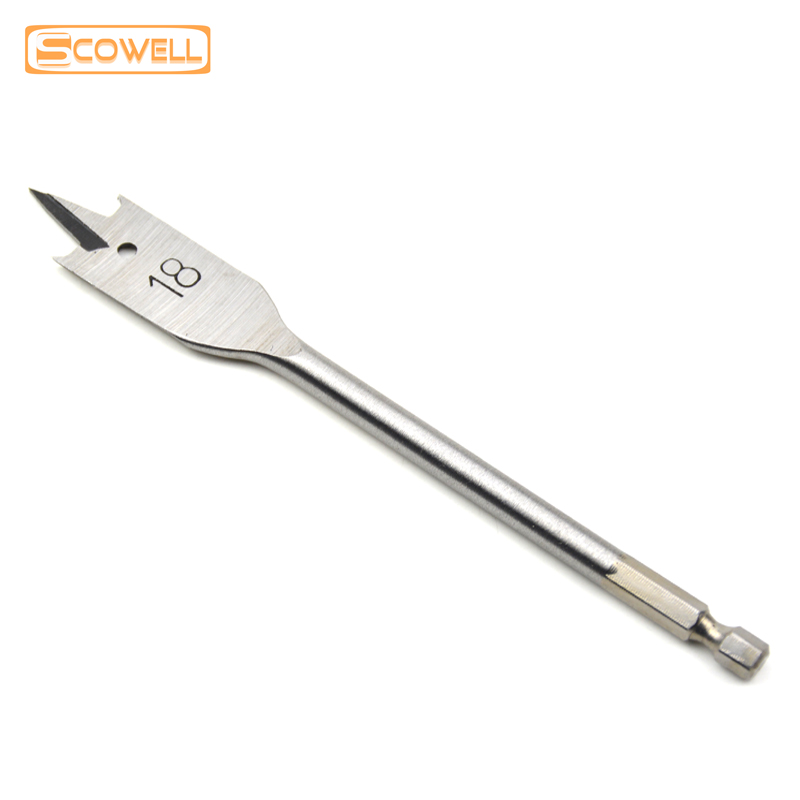

Wood Flat Spade Drill Bits

  • High Carbon Steel

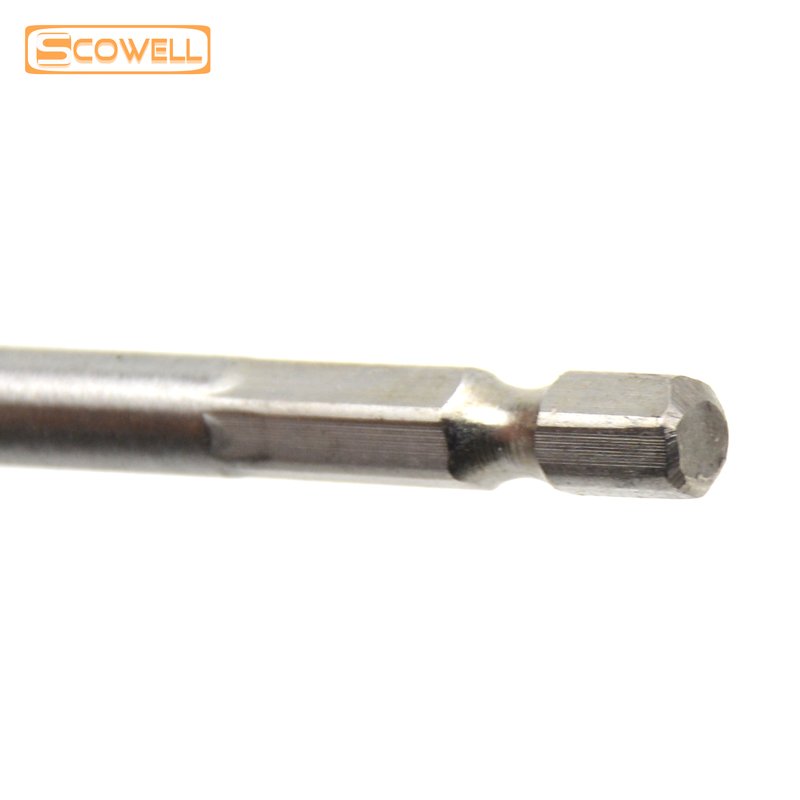

  • 1/4 hex shank
  • three tips
  • Products No.: WD-001
  • Product description: made of hign carbon steelor chrome,vanadium with brade point and 2 shouldered cutting spurs cutting flutes are engineered for optimum chip ejection so drill will not bindand burn out for drilling ac
  • INQUIRY

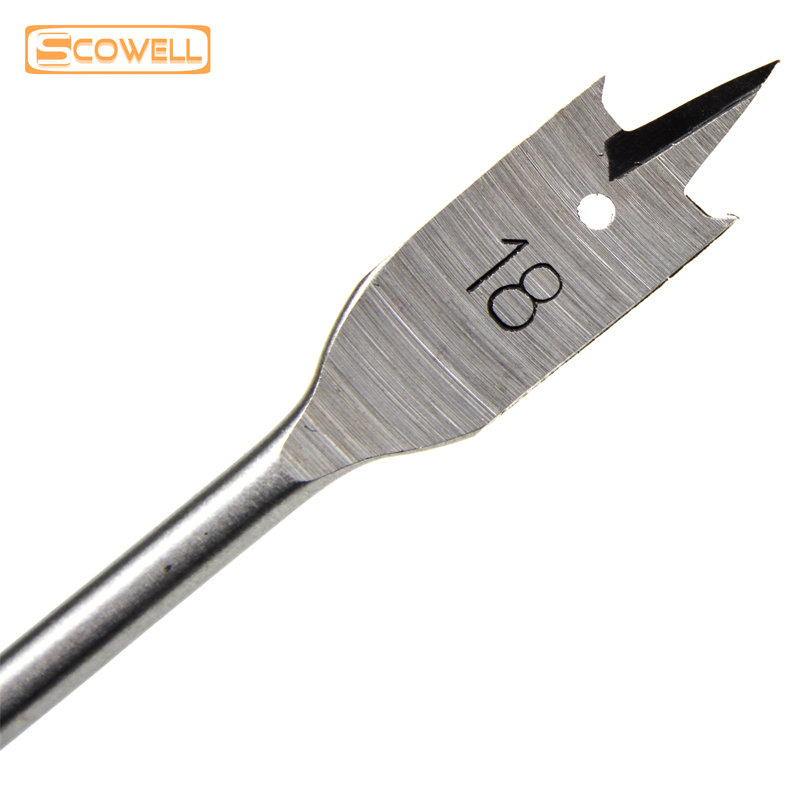

made of hign carbon steelor chrome,vanadium with brade point and 2 shouldered cutting spurs

cutting flutes are engineered for optimum chip ejection so drill will not bindand burn out

for drilling accurate,splinter-free holes in soft wood,playwood and hardwood

use in hand drills,electric portable drills,drill presses and lathes


Diameter Overall Length Diameter Overall Length
mm inch Normal mm inch Normal
6 1/4 152mm(6") 22 7/8 152mm(6")
8 5/16 152mm(6") 24 15/16 152mm(6")
10 3/8 152mm(6") 25 1 152mm(6")
11 7/16 152mm(6") 26 1-1/32 152mm(6")
12 15/32 152mm(6") 28 1-1/8 152mm(6")
13 1/2 152mm(6") 30 1-3/16 152mm(6")
14 9/16 152mm(6") 32 1-1/4 152mm(6")
15 19/32 152mm(6") 34 1-5/16 152mm(6")
16 5/8 152mm(6") 35 1-3/8 152mm(6")
17 21/32 152mm(6") 36 1-7/16 152mm(6")
18 11/16 152mm(6") 38 1-1/2 152mm(6")
19 3/4 152mm(6") 40 1-9/16 152mm(6")
